Wefts::OSThreadBase Class Reference
[OS Threading Level Abstraction.]

Thread OS layer abstraction This class can be rewritten in other header files to implement different os specific threading system. More...

#include <wefts_os_base.h>

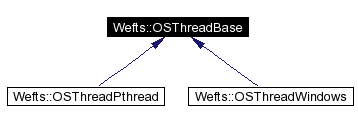

Inheritance diagram for Wefts::OSThreadBase:

[legend]List of all members.

Public Methods
virtual bool	start (void *(*func)(void *), void *data)=0
	Starts OS specific thread OS dependant implementation must provide a valid function to execute the thread; Thread.cpp has already some valid ones.
virtual bool	stop ()=0
	Stop this OS specific thread.
virtual void *	join ()=0
	Joins this OS Specific threads.
virtual int	enableCancel ()=0
	Enables cancelation: This function returns the old status on success, that can be later reset with setCancelStatus.
virtual int	disableCancel ()=0
	Disables cancelation.
virtual bool	setCancelState (int state)=0
	Raw function to set the cancel type.
virtual void	testCancel ()=0
	Kill the thread on OS level cancelation.
virtual void	setCancelDeferred ()=0
	Tells the thread that it must use deferred cancelation.
virtual void	detach ()=0
	Detach thread.
virtual void	emuDeferredStart ()
	Starts emulated deferred cancelation.
virtual void	emuDeferredEnd ()
	End emulated deferred cancelation.
virtual void	osRun (void(*func)(void *), void *data, void(*cleanup)(void *))=0
	Executes a procedure under the hood of a cleanup procedure This method requires the underlying OS threading system to set up a single cleanup procedure, execute the procedure "func" and then call the cleanup procedure; if the thread is canceled, os system must provide.
virtual bool	same () const=0
	Returns true if the currently running thread and this objects are the same.
virtual bool	equal (const OSThreadBase &th) const=0
	Returns true if this object is equal (on OS opinion) to the parameter.
virtual bool	setCurrent ()=0
	Change this thread object to the current OS dependant thread.
virtual void	invalidate ()=0
virtual bool	operator== (OSThreadBase &th)
	Pass the test to equal().
virtual bool	operator!= (OSThreadBase &th)
	Pass the test to ! equal().
Protected Methods
	OSThreadBase ()
	Newly created thread.
	OSThreadBase (bool)
	Already running thread.
virtual void	exit (void *data)=0
	Exit the thread.

---

Detailed Description

Thread OS layer abstraction This class can be rewritten in other header files to implement different os specific threading system.

See also:

OS Threading Abstraction (and Independence) Layer

---

Constructor & Destructor Documentation

Wefts::OSThreadBase::OSThreadBase (    )  [inline, protected]

Newly created thread. Subclassess must calll invalidate() member to specify that the current thread is still not running.

Wefts::OSThreadBase::OSThreadBase (  bool    )  [inline, protected]

Already running thread. Call this constructor if you need to have a reference to the thread that is currently running; this will set the OSThreadBase internal data as if a start were called at some point.

---

Member Function Documentation

virtual void Wefts::OSThreadBase::detach (    )  [pure virtual]

Detach thread. Note: Wefts detaching differs from pthread detaching; a wefts detached thread is just a thread whose class data will be automatically destroyed on termination (and that can't be joined). See also: Thread::detach() Implemented in Wefts::OSThreadPthread, and Wefts::OSThreadWindows.

virtual int Wefts::OSThreadBase::disableCancel (    )  [pure virtual]

Disables cancelation. Wokrs like enableCancel. See also: enableCancel() Implemented in Wefts::OSThreadPthread, and Wefts::OSThreadWindows.

virtual void Wefts::OSThreadBase::emuDeferredEnd (    )  [inline, virtual]

End emulated deferred cancelation. In base class, it does nothing. If the os does support natively the deferred cancelation scheme, this function is useless. See also: Cancellation Issues

virtual void Wefts::OSThreadBase::emuDeferredStart (    )  [inline, virtual]

Starts emulated deferred cancelation. In base class, it does nothing. If the os does support natively the deferred cancelation scheme, this function is useless. See also: Cancellation Issues

virtual int Wefts::OSThreadBase::enableCancel (    )  [pure virtual]

Enables cancelation: This function returns the old status on success, that can be later reset with setCancelStatus. On error, return type is undefined. Note: a candidate for exception rising. Todo: write a low-level exception system. Implemented in Wefts::OSThreadPthread, and Wefts::OSThreadWindows.

virtual bool Wefts::OSThreadBase::equal (  const OSThreadBase &    th )  const [pure virtual]

Returns true if this object is equal (on OS opinion) to the parameter. Implemented in Wefts::OSThreadPthread, and Wefts::OSThreadWindows.

virtual void Wefts::OSThreadBase::exit (  void *    data )  [protected, pure virtual]

Exit the thread. Run() can call this method instead of retunring a void *; the effect is the same. Implemented in Wefts::OSThreadPthread, and Wefts::OSThreadWindows.

virtual void Wefts::OSThreadBase::invalidate (    )  [pure virtual]

Implemented in Wefts::OSThreadPthread, and Wefts::OSThreadWindows.

virtual void* Wefts::OSThreadBase::join (    )  [pure virtual]

Joins this OS Specific threads. Implemented in Wefts::OSThreadPthread, and Wefts::OSThreadWindows.

virtual bool Wefts::OSThreadBase::operator!= (  OSThreadBase &    th )  [inline, virtual]

Pass the test to ! equal().

virtual bool Wefts::OSThreadBase::operator== (  OSThreadBase &    th )  [inline, virtual]

Pass the test to equal().

virtual void Wefts::OSThreadBase::osRun (  void(*    func)(void *), void *    data, void(*    cleanup)(void *) )  [pure virtual]

Executes a procedure under the hood of a cleanup procedure This method requires the underlying OS threading system to set up a single cleanup procedure, execute the procedure "func" and then call the cleanup procedure; if the thread is canceled, os system must provide. "data" to the cleanup procedure and exit cleanly. Data is actually a Wefts::Thread or derived object, but the data must be considered opaque to os layer. Currently func() is only a wrapper to call data->run(), but this may change in the future. Implemented in Wefts::OSThreadPthread, and Wefts::OSThreadWindows.

virtual bool Wefts::OSThreadBase::same (    )  [pure virtual]

Returns true if the currently running thread and this objects are the same. Implemented in Wefts::OSThreadPthread, and Wefts::OSThreadWindows.

virtual void Wefts::OSThreadBase::setCancelDeferred (    )  [pure virtual]

Tells the thread that it must use deferred cancelation. The OS may provide deferred cancelation schemes natively, or not. In the latter case, deferred cancelation must be emulated; See Cancellation Issues. When OS does not provides inbound deferred cancelation, this routine must do nothing. Implemented in Wefts::OSThreadPthread, and Wefts::OSThreadWindows.

virtual bool Wefts::OSThreadBase::setCancelState (  int    state )  [pure virtual]

Raw function to set the cancel type. This function should be used only with the integer returned by enableCancel() and disableCancel(), as no assumption can be made about what the meaning of the parameter could be in different environments. Parameters: state  system dependant (that is to say: don't touch it). Returns: true on success Implemented in Wefts::OSThreadPthread, and Wefts::OSThreadWindows.

virtual bool Wefts::OSThreadBase::setCurrent (    )  [pure virtual]

Change this thread object to the current OS dependant thread. It makes so that all the internal variables are set to reflect this current thread. In some implementation, updating of some variables my be deferred to a later moment; the important thing is to change the thread type. Implemented in Wefts::OSThreadPthread, and Wefts::OSThreadWindows.

virtual bool Wefts::OSThreadBase::start (  void *(*    func)(void *), void *    data )  [pure virtual]

Starts OS specific thread OS dependant implementation must provide a valid function to execute the thread; Thread.cpp has already some valid ones. Parameters: func  the function to be executed in parallel thread. data  the data to be passed to os-level thread function Implemented in Wefts::OSThreadPthread, and Wefts::OSThreadWindows.

virtual bool Wefts::OSThreadBase::stop (    )  [pure virtual]

Stop this OS specific thread. Implemented in Wefts::OSThreadPthread, and Wefts::OSThreadWindows.

virtual void Wefts::OSThreadBase::testCancel (    )  [pure virtual]

Kill the thread on OS level cancelation. Implemented in Wefts::OSThreadPthread, and Wefts::OSThreadWindows.

---

The documentation for this class was generated from the following file:

• wefts_os_base.h

---
