Wefts::Condition Class Reference
[Conditions]

Class implementing a condition variable. More...

#include <wefts_cond.h>

Inheritance diagram for Wefts::Condition:

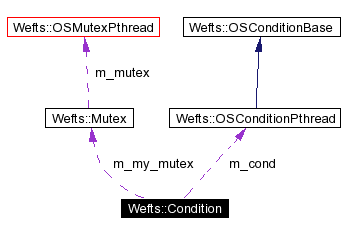

[legend]Collaboration diagram for Wefts::Condition:

[legend]List of all members.

Public Methods
	Condition (Mutex *mtx=0)
	Initializes the internal data of the condition.
	~Condition ()
virtual bool	wait ()
	Waits for the condition to be active.
void	setMutex (Mutex *mtx)
virtual bool	wait (long seconds, long nanoseconds)
	Waits for the condition to be active up to a certain time.
int	wait (double seconds)
	Waits for the condition to be active for a certain time.
virtual void	signal ()
	Signals the condition.
void	onStop (CleanupHandler *guard=0, int param=0)
	Set up cancelation handler.
Protected Attributes
OSCondition	m_cond
	Internal condition variable.
Mutex *	m_my_mutex
	Internal mutex.
CleanupItem	m_whenStopped

---

Detailed Description

Class implementing a condition variable.

This condition class is meant to be overloaded by classes using specific mutex types. To use it, you have to create your own class using a combination of this class plus a fast or a reentrant mutex. This is implemented in the wtFastCondition and wtRCondition classes.

Subclassess must set m_my_mutex to a valid Wefts::Mutex pointer (or any subclass of that).

All condition classes are implemented via inline calls to maximize execution speed; also, their metods are extremely small.

---

Constructor & Destructor Documentation

Wefts::Condition::Condition (  Mutex *    mtx = 0 )  [inline]

Initializes the internal data of the condition. Initialization of m_my_mutex member is left to subclasses.

Wefts::Condition::~Condition (    )  [inline]

---

Member Function Documentation

void Wefts::Condition::onStop (  CleanupHandler *    guard = 0, int    param = 0 )  [inline]

Set up cancelation handler. When a thread waiting on a condition is canceled the thread cleanup system is called with the condition in locked() status. It is necessary to unlock it before to proceed; so it is necessary to provide a CleanupHandler. If you have access to the calling thread you can use Thread::pushCleanup(), while if you have not access to it you should use this method (that is anyhow more efficient). See also: Condition cleanup

void Wefts::Condition::setMutex (  Mutex *    mtx )  [inline]

virtual void Wefts::Condition::signal (    )  [inline, virtual]

Signals the condition. When a condition is signaled all the waiting threads are given a chance to go.

int Wefts::Condition::wait (  double    seconds )  [inline]

Waits for the condition to be active for a certain time. Works as wait( long seconds, long nanoseconds), but the wait time can be expressed as a real number, 1.0 meaning a second. Be sure to 1) don't stop a thread while waiting on a condition, 2) disable cancelation around a wait() or 3) set up a cancelation sequence (Condition cleanup). ams seconds time to wait for (seconds and fraction of seconds expressed as decimal part) Returns: 0 if condition is signaled, non zero (posix pthread error) otherwise.

virtual bool Wefts::Condition::wait (  long    seconds, long    nanoseconds )  [inline, virtual]

Waits for the condition to be active up to a certain time. This method works as wait() but returns (with nonzero value) if a certain time has elapsed. If you call this function, you have to specify the amount of seconds and second fractions (expressed in nanoseconds) you want to wait for a single event to be risen. Granularity of the system greatly depends on underlying OS and process priviledges. Be sure to 1) don't stop a thread while waiting on a condition, 2) disable cancelation around a wait() or 3) set up a cancelation sequence (Condition cleanup). Parameters: seconds  integer count of seconds to wait for. nanoseconds  integer count of nanoseconds to wait for (maximum is 999,999,999). Returns: true if condition is signaled, false on error.

virtual bool Wefts::Condition::wait (    )  [inline, virtual]

Waits for the condition to be active. This method waits forever or until stopped by an external event (signal). Be sure to 1) don't stop a thread while waiting on a condition, 2) disable cancelation around a wait() or 3) set up a cancelation sequence (Condition cleanup). Returns: true if condition is signaled, false on error.

---

Member Data Documentation

OSCondition Wefts::Condition::m_cond [protected]

Internal condition variable.

Mutex* Wefts::Condition::m_my_mutex [protected]

Internal mutex. Subclasses are invited to set this mutex to an initialized specific kind of mutex at creation.

CleanupItem Wefts::Condition::m_whenStopped [protected]

---

The documentation for this class was generated from the following file:

• wefts_cond.h

---
